Products Description
The Current Limited Back Fuse (CL fuse)is used in transformers to protect and isolate faulted equipment. Whenconnected in series with a low current primary protection device, such as Bay-0-Net fuse link, the CL fuse becomesan element of a two part protection system that gives a full range of fault protection.This two-part system provides low current protection with the replaceable expulsion fuse. Together, the CL fusecoordinate easily with upstream and downstream devices.
Our factory & quipment
Current limited back fuse
Products Features
Dual Protection System
– When used in series with a low-current primary protection device (such as a Bay-O-Net fuse link), the CL fuse forms a two-part protection system, providing comprehensive fault coverage.
Fault Isolation – Designed for transformers, it effectively isolates faulty equipment to prevent further damage.
Low-Current Protection – Works in conjunction with a replaceable expulsion fuse to protect against low-current faults.
Strong Coordination – Easily coordinates with upstream and downstream devices, ensuring system-wide protection reliability.
Flexible Application – Ideal for scenarios requiring sectionalized protection, particularly in critical equipment like transformers.
Core Advantage: Combines full-range fault protection with isolation and seamless coordination.
Products Parameter
| Type | Rated Current (A) | A (Inch/mm) | B (Inch/mm) | MA | φC | Breaking Current |
|---|---|---|---|---|---|---|
| XRNT5-15.5 | 20, 25, 31.5, 40 | 9.76 / 248 | 8.5 / 216 | M6 | φ53 | - - 50kA - |
| 50, 63, 80, 100, 125 | 14.0 / 356 | 12.76 / 324 | M6 | φ53 | ||
| 150, 175 | 15.94 / 405 | 14.69 / 373 | M6 | φ53 | ||
| 200, 250 | 19.45 / 494 | 18.19 / 462 | M10 | φ76 | ||
| XRNT5-25 | 315 | 23.62 / 600 | 22.32 / 1567 | M10 | φ76 | - 50kA - - |
| 20, 25, 31.5, 40 | 19.45 / 494 | 18.19 / 462 | M10 | φ76 | ||
| 50, 63, 80, 100, 125 | 13.0 / 356 | 12.76 / 324 | M6 | φ53 | ||
| 125, 150, 175, 200 | 23.62 / 600 | 22.32 / 1567 | M10 | φ76 | ||
| XRNT5-40.5 | 10, 20 | 22.68 / 576 | 21.38 / 543 | M10 | φ76 | - 31.5kA - |
| 31.5, 40, 50, 63 | 23.86 / 606 | 22.56 / 573 | M10 | φ76 | ||
| 80, 100, 125, 150, 165 | 27.36 / 695 | 25.79 / 655 | M10 | φ76 |
Products Demensions

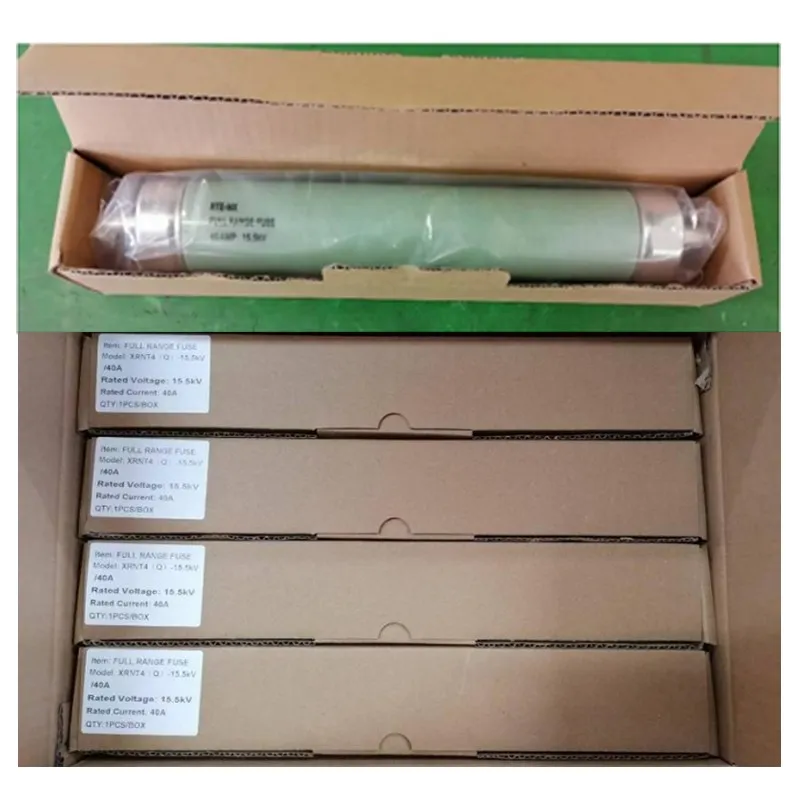

Products Packing
FAQ
Q 1. Are you factory?
A.YES, Welcome to visit our company and factory.
Q 2. How's the delivery time?
A. Usually it will take about 7-30 days for MOQ
Q 3.Can you design customer's packing?
A.YES.We can customized the package for you.
Q 4.Do you have abilityfor OEM/0DM cooperation?
A.OEM/ODM cooperation is welcomed. And we have full experience about them.
Q 5.We wants to know month capacity.
A. lt depends on which model. Generally, month capacity can reach near 100,000pcs.
