Wenzhou Shuowei Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of plastic molded tri clamp secondary bushing in China, also supports customized service. Welcome to wholesale bulk advanced plastic molded tri clamp secondary bushing in stock here from our factory. If you have any enquiry about quotation, please feel free to email us.
Products Description

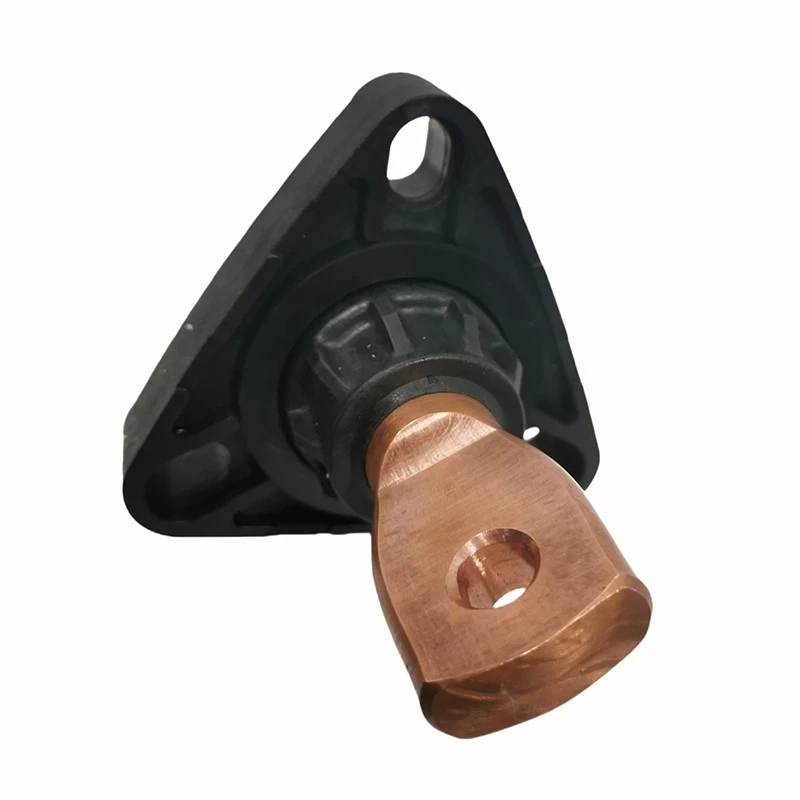

These thermoplastic LV bushings are designed for pad-mounted transformers, featuring a one-hole spade connection compatible with 5/8" or 1" threaded studs. Engineered for secure installation, durability, and superior electrical insulation, these bushings ensure reliable performance in demanding electrical applications.
Products Features
Secure Clamp Mechanism – Ensures even pressure distribution for vibration resistance and long-term stability.
Easy Installation & Maintenance – No special tools required, reducing downtime and risk of damage.
High-Performance Insulation – Thermoplastic material prevents short circuits, enhancing safety.
Wide Compatibility – Suitable for new installations and retrofits across various industries.
Robust Construction – Withstands mechanical stress, thermal expansion, and frequent servicing.
Products Parameter
| Parameter | Specification |
|---|---|
| Voltage Class | 1.2 kV |
| Basic Impulse Level (BIL) | 30 kV |
| AC Withstand Voltage | 10 kV/min |
| Continuous Current | 1500 A |
| Operating Temperature | -40°C to +140°C |
| Environmental Condition | Indoor (no salt fog/chemical corrosion) |
| Conductor Material | Copper (C11000) |
| Insulation Body Color | Black |
| Recommended Tank Hole Diameter | 45.0 ±0.5 mm |
| Sealing Gasket | As per left-view diagram |
| Customization | Dimensions adjustable per customer requirements |
Products Packing
FAQ
Q 1. Are you factory?
A.YES, Welcome to visit our company and factory.
Q 2. How's the delivery time?
A. Usually it will take about 7-30 days for MOQ.
Q 3.Can you design customer's packing?
A.YES.We can customized the package for you.
Q 4.Do you have ability for OEM/ODM cooperation?
A.OEM/ODM cooperation is welcomed. And we have full experience about them.
Q 5.We wants to know month capacity.
A. lt depends on which model. Generally, month capacity can reach near 100,000pcs.
