Wenzhou Shuowei Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 25kv 200a high voltage bushing well in China, also supports customized service. Welcome to wholesale bulk advanced 25kv 200a high voltage bushing well in stock here from our factory. If you have any enquiry about quotation, please feel free to email us.

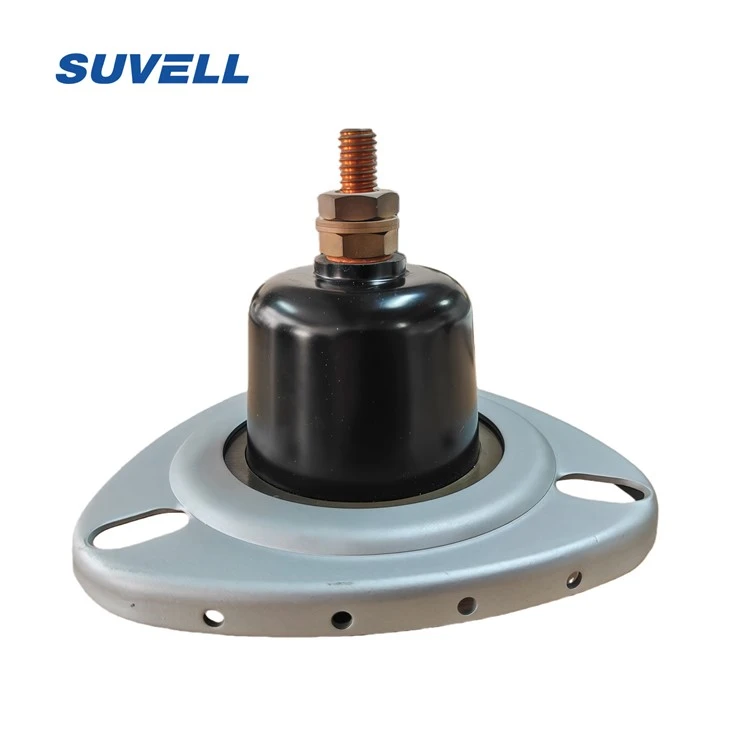

High Voltage 15kv 200a Bushing Well(Dacromet)
Products Description
Primary Application:
Designed for 200A gas-insulated switchgear (GIS), ring main units (RMUs), dry-type transformers, and similar high-voltage equipment. Facilitates secure connections on the high-voltage side between switches, transformers, or other components in electrical distribution networks.
Key Features & Benefits:
Flexible Configuration Options:
Compatible with single-through bushing inserts, feedthru inserts, or single-way surge arresters (Tarrester).
Enables modular integration via standardized casing interfaces.
Robust Mechanical Design:
High-strength, non-brittle construction ensures durability under mechanical stress.
Dacromet (Dacrotized) Surface Treatment:
ROHS-compliant, environmentally friendly coating.
Environmental Resilience:
High-temperature tolerance (up to 300°C) for stable operation in harsh conditions.
UV-resistant and weatherproof for outdoor/indoor use.
Electrical Compliance & Safety:
IEEE 386 Standard compliant for seamless interoperability with existing switchgear and transformer designs.
Partial discharge-resistant insulation materials for enhanced reliability.
Installation Versatility:
Supports horizontal or vertical mounting in switchgear compartments or transformer housings.
Optional silicone rubber sealing for gas-tight applications (GIS).
Typical Use Cases:
Switchgear Connections: Links high-voltage busbars to circuit breakers or disconnectors.
Transformer Terminations: Connects to dry-type transformer windings.
Surge Protection Integration: Direct interface with arresters for overvoltage mitigation.
Standards & Certifications:
IEEE 386 (bushing interface dimensions).
Products Feature
| Feature | Description |
|---|---|
| Application | High-voltage circuitry in pad-mounted transformers, substations, and switchgear. |
| Function | Terminates/seals transformer primary winding leads; mates with bushing inserts. |
| Compliance | ANSI/IEEE Standard 386 (design, testing, and performance criteria). |
| Key Components | - Bushing Insert (load break functionality) - Rotatable Feed-thru Insert - Cable accessories. |
| Advantages | - Ensures transformer integrity and safety - Rigorously tested for reliability. |
The bushing well is crafted from premium insulating material, ensuring a fully shielded insulating connection when combined with similarly rated products.
Products Dimensions
Products Information
| Description | Model |
| 15kV 200A Casing seat | STGZ-15/200 |
| 15kV 200A Casing seat | STGZ-25/200 |
Products Packing
|
Inner packing |
|
|
Product Details: Including gasket, seal ring, protective cap |
|
|
|
Products FAQ
Q 1. Are you factory?
A.YES, Welcome to visit our company and factory.
Q 2. How's the delivery time?
A. Usually it will take about 7-30 days for MOQ
Q 3.Can you design customer's packing?
A.YES.We can customized the package for you.
Q 4.Do you have abilityfor OEM/0DM cooperation?
A.OEM/ODM cooperation is welcomed. And we have full experience about them.
Q 5.We wants to know month capacity.
A. lt depends on which model. Generally, month capacity can reach near 100,000pcs.
