Cover Mounted Bay-O-Net Fuse Holder VS Bay-O-Net Fuse Holder ,How To Choose?

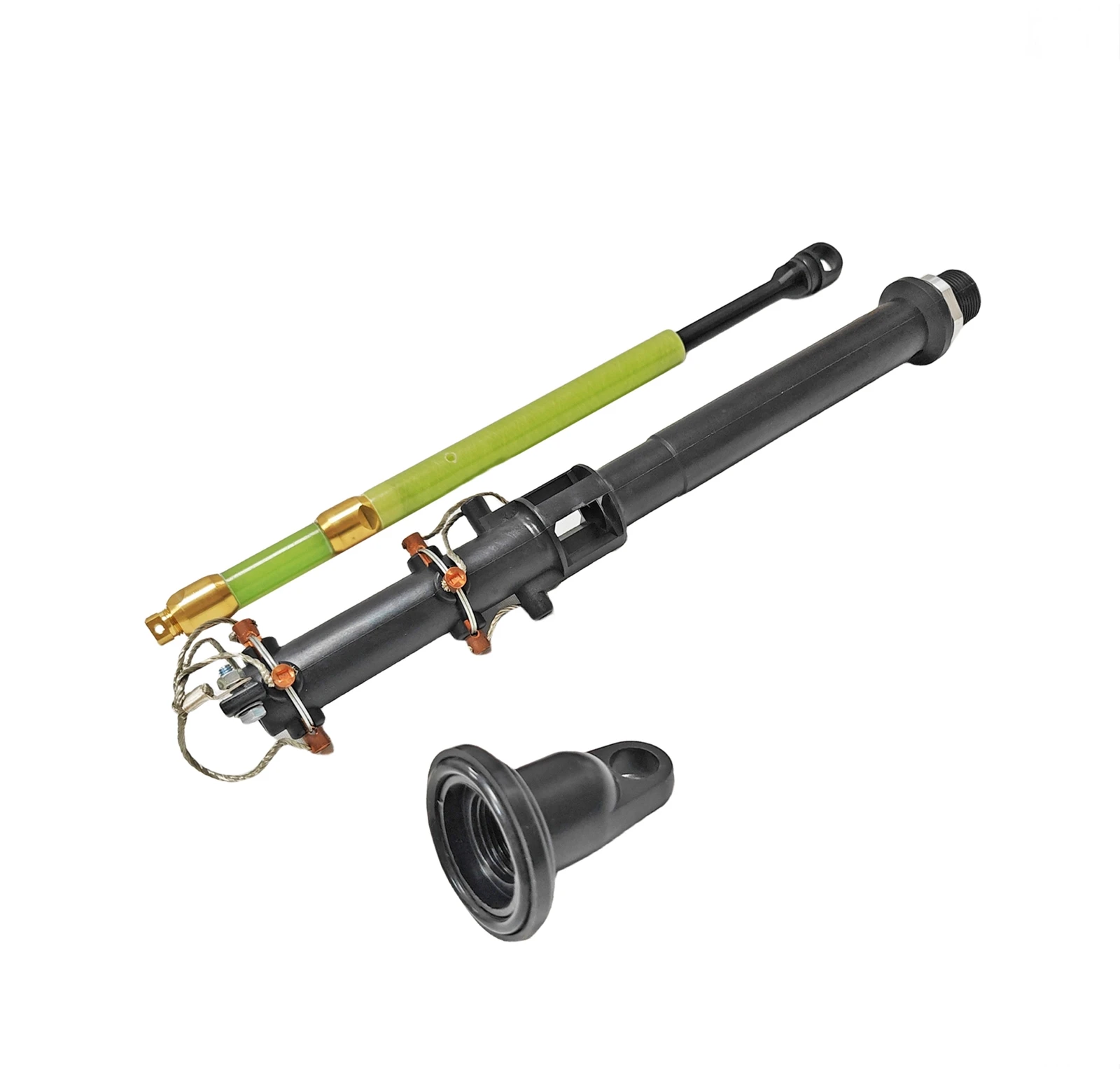

What is the Bay-O-Net Fuse Holder ?

The specialized bracket or interface used inside an oil-immersed transformer to mount and secure the Plug-in Fuse (Bay-O-Net Fuse) is referred to in industry-standard terminology as the Bay-O-Net Fuse Holder.

1. Core Function
The Holder serves as a permanently installed base, providing standardized electrical connections and mechanical slots to ensure that the fuse unit (Fuse) can be accurately and reliably inserted and integrated into the circuit.

2. Installation Location
It is permanently mounted inside the transformer tank, fully immersed in insulating oil.

3. Maintenance Significance
When the fuse operates due to a fault, professional maintenance involves replacing only the fuse unit (Fuse). The Holder itself generally remains in place and does not require replacement unless damaged.

4. Design and Selection
The Holder and the Fuse must conform to the same standard system (e.g., ANSI in the United States) to ensure full compatibility in dimensions and electrical performance.

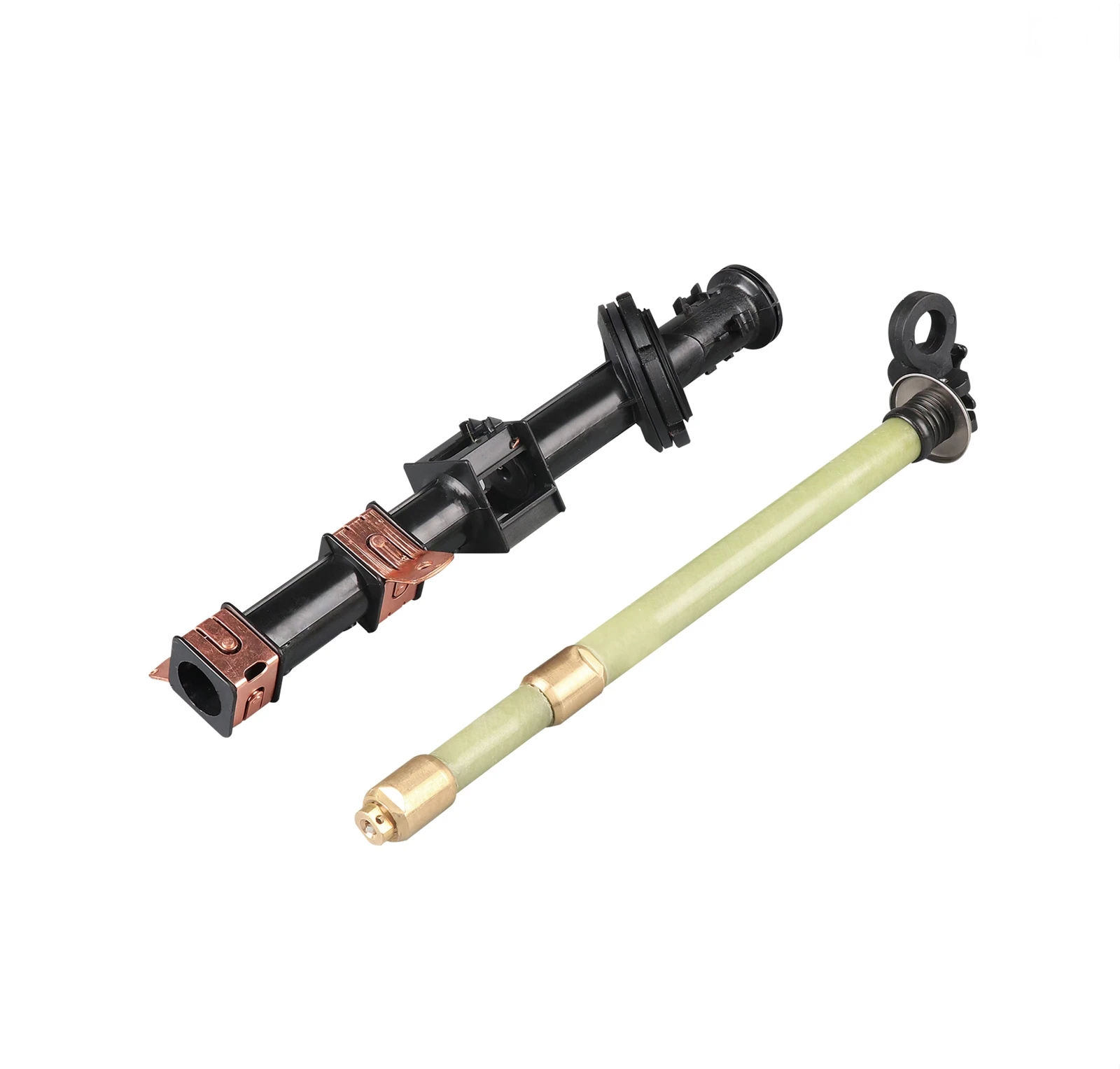

what is the Cover Mounted Bay-O-Net Fuse Holder?

Think of a standard electrical panel in your house. It has a row of circuit breakers that you can flip on and off. A Cover Mounted Bay-O-Net Fuse Holder is like a specialized, heavy-duty "slot" for a specific type of fuse, mounted directly on the door of a larger industrial electrical cabinet, instead of inside it.

Key Features:

Installation: Mounts inside the transformer oil of compact or buried substations, sharing the enclosure with the transformer and switch.

Function: Can be combined with a backup current-limiting fuse to provide full-range protection. It clears sustained overloads, while the backup fuse interrupts short-circuits.

Applications: Ideal for power distribution protection in renewable energy systems (wind, solar, tidal).

Performance: Easy to install and replace, with a stable time-current curve and a breaking capacity of 2.5kA.
